Yas Optic Fiber Thiab Cable Assembly
POF cable thiab lwm yam kev sib dhos thaj cords hauv kev sib txuas lus
Khoom Taw qhia
POF cable thiab lwm yam kev sib dhos thaj cords hauv kev sib txuas lus

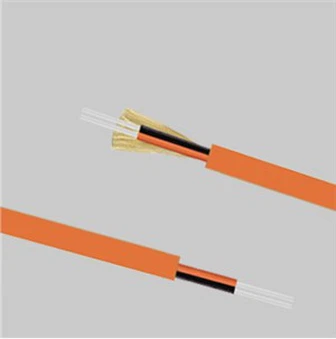

Yas optical fiber cable (POF cable)Cov tub ntxhais ntawm fiber ntau optic cable yog ua los ntawm PMMA, thiab tsho nrog dub PE, PVC, TPU los yog txiv kab ntxwv PUR sheath rau ntau lub hom phiaj. Qhov no polymer fiber optics yog multimode fiber ntau, nws kawg glow / emitting muaj nuj nqi yog siv rau kev sib txuas lus cov ntaub ntawv. Cov hom fiber ntau optic cable ib zaugsib dhosnrog optical fiber connectors, uas peb hu ua fiber ntau optic thaj qaum, zoo li Avago HFBR series, sma 905, MOST thiab M3 / M4 / M6,Lawv muaj tus nqi sib tw dua li iav fiber ntau hauv kev siv Kev Tswj Lag Luam, Automation, Sensing system, Security & Tswb thiab Networking thiab lwm yam.
Muaj peb feem ntawm POF cables.
Simplex POF
Khoom code | Fiber ntau OD | Cable OD | Attenuation | Sib npaug |
TX-CC1000-1A | 1. 0 mm | 2.2 hli | Tsawg dua lossis sib npaug li 170dB / km | SH4001, GH4001 |
TX-CC1000-1AV | 1. 0 mm | 2.2 hli | Tsawg dua lossis sib npaug li 170dB / km | GHV4001, UL VW-1 |
Spool Length: 2500 m | ||||
Duplex POF
Khoom code | Fiber ntau OD | Cable OD | Attenuation | Sib npaug |
TX-CC1000-2A | 1. 0 mm | 2.2 hli x 4.4mm | Tsawg dua lossis sib npaug li 170dB / km | SH4002, GH4002 |
TX-CC1000-2AV | 1. 0 mm | 2.2 hli x 4.4mm | Tsawg dua lossis sib npaug li 170dB / km | GHV4002, UL VW-1 |
Spool ntev: 1250 m, meter mark yog muaj | ||||
Multi-core POF
Khoom code | Fiber ntau OD | Cable OD | Attenuation | Sib npaug |
TX-CC0250-9 | 0.25 mm x 9 cores | 1.25 hli | Tsawg dua lossis sib npaug li 650dB / km | SIB 1009 |
TX-CC0250-16 | 0.25 mm x 16 cores | 2.2 hli | Tsawg dua lossis sib npaug li 650dB / km | SIB 1016 |
Spool Length: 1000 m | ||||
Peb POF buffered:
Khoom code | Fiber ntau OD | Cable OD | Core | Jacket |
TX-CC1000-1T | 1. 0 mm | 5.5mm ib | 1 cev | Txiv kab ntxwv PUR/Balck LSZH |
TX-CC1000-2T | 1. 0 mm | 5.5mm ib | 2 cev | Txiv kab ntxwv PUR/Balck LSZH |
Spool Length: 500 m | ||||
Muaj tsib ntu rau fiber ntau optic thaj qaum.
Avago HFBR series
| HFBR4501Z - HFBR4511Z |
| HFBR4503Z - HFBR4513Z |
| HFBR4506Z - HFBR4516Z |
| HFBR4531Z - HFBR4533Z |
| HFBR4532Z - HFBR4532Z |
Industrial tswj serial
| SMA 905 / SMA905 |
| ST / ST |
| FC/FC |
| FC/PC |
| SC / SC |
Industrial sensing system
| M3 los ntawm-beam optical fiber sensor |
| M4 diffuse reflection optical fiber ntau sensor |
| M6 coaxial optical fiber ntau sensor |
LUB SIJ HAWM CAR tswj system
TOCP thiab AMP series rau servo system
| TIAB SA 155 |
| TSO 200 |
| TIAB SA 255 |
| MR-J3BUS |
Peb tus neeg sawv cev series:
TORAY PK, PG thiab PQE series, PQE yog tshwj xeeb rau cov cuab yeej kho mob nrog NA loj dua |
MITSUBISHI CK-10, CK-20, CK-30, CK-40, CK-60,CK{{0}} , CK-120 , SK-80 , SH-1001 , SH-1010 , SH-1004-1.0 , SH{ {7}}.3 , BH-4001 , SH-4002 , SH-1009 , SH-2001-J , GH-4001-P , SH{14}} , SH-1016-G |
AVAGO RUS100Z, RUS500Z, EUS100Z, EUS500Z, RUD500Z, EUD500Z |
Yas optical fiber cable (POF cable) yog siv dav hauv kev sib txuas lus thiab teeb pom kev zoo.
Peb cov neeg siv khoom feem ntau yog los ntawm
High-voltage inverter
SVG (Static Var Generator)
Automation
Kev lag luam hluav taws xob
Ntse Grids
Daim phiaj txuas nrog inverter
Fiber sensing thiab kuaj
Hnub ci fiber ntau optic teeb pom kev zoo
Peb lub Hoobkas
Nws qhov chaw yog lub nroog zoo nkauj Zhenjiang, uas yog nyob rau sab qab teb ntawm tus Dej Yangtze.
Kev siv lub Hoobkas tshiab khij txoj kev loj hlob sai ntawm TX lub tuam txhab, Hauv optic fiber ntau cable teb, lub Hoobkas tshiab no tau nqis peev ntau ntawm cov cuab yeej siv siab heev los nthuav cov peev txheej ntau lawm, li no, peb muaj peev xwm ua tiav ntau qhov kev txiav txim los ntawm domestic thiab txawv teb chaws. kev lag luam.
Muaj ntau qhov kev cob qhia ntxiv rau hauv lub Hoobkas tshiab no, sparkle teeb pom kev zoo optic fiber / clad fiber nrog ntshiab thiab dub PVC tsho, sab ci fiber ntau, ntau cov tub ntxhais fiber ntau cable thiab lub teeb qhov chaw cav, dhau li ntawm simplex thiab duplex POF cable & thaj qaum / jumper rau kev sib txuas lus.
Kev daws teeb meem
- Tsim - Stripping
- Txiav - Sib dhos
- Polishing & Sib Tsoo - Ntim
Cov ntawv pov thawj:
UL - OFN 758 VW-1 nplaim taws-retardant
24 Teev Kev Pabcuam yog muaj:
Lub npe: Peter
Tel. : plus 86 19505282869 ( Wechat )
Email : lys@txpof.com
