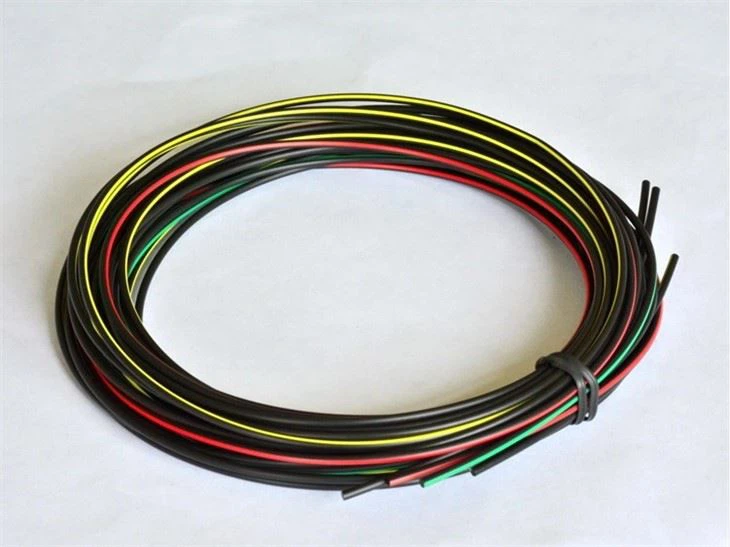

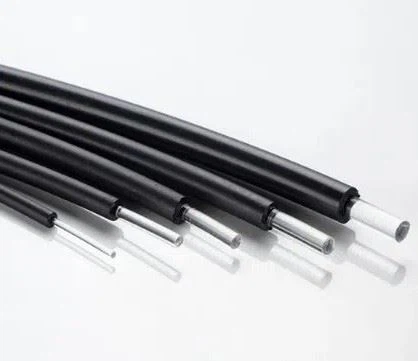

UL Hluav Taws Kub Resistant Yas Optic Fibers
High quality Fire retardant cables yog tsim los siv rau hauv cov xwm txheej hluav taws kub uas qhov kev sib kis ntawm cov nplaim taws nyob rau hauv txoj kev cable yuav tsum tau retarded. Vim yog tus nqi qis, hluav taws kub retardant cables tau dav siv los ua hluav taws kub ciaj sia cables.
Khoom Taw qhia
Khoom Description
| Yam khoom | Chav tsev | Specification | Txoj Kev Xeem | |
Cov qauv tsim tsis muaj | Core txoj kab uas hla | m | 980±60 | YD/T 1258. 6-2006 YD/T1447-2006 GB/T12357 4-2004 |
| Cladding txoj kab uas hla | ua um | 1000±60 | ||
| Numerical Aperture | NA | 0.5±0.15 | ||
Outer Jacket Diameter | mm | 2.20±0.07 | ||
| Kwv yees qhov hnyav | gm ua | 5.2 | ||
| Optical propeties | Transmission Loss(ntawm 650nm) | dB/km | Tsawg dua los yog sib npaug li 160 | YD/T 1258. 6-2006 YD/T1447-2006 GB/T12357 4-2004 |
Mecharical Yam ntxwv | Rov ua dua Bendng Kev ua siab ntev | dB | Poob Increment Tsawg dua los yog sib npaug rau 0.2dB | |
| Tensile zog | N | 260 | ||
| Twisting Endurance | dB | Poob Increment Tsawg dua los yog sib npaug rau 0.2dB | ||
| Impact Endurance | dB | Poob Increment Tsawg dua los yog sib npaug rau 0.2dB | ||
| nplaim-retardant Kev ua tau zoo | Nplaim-retardart Rating | VW -1 | UL758 (E56012) | |
| Txuj | UL758,ROHS,REACHSGS,YD/T1258. | |||
Khoom Model
| TXP yas fiber ntau optic cable specifications | ||||||||
| Tus lej | Qauv | Core txoj kab uas hla (mm) | Sab nrauv txoj kab uas hla (mm) | Attenuation (dB/km) | Jacket khoom | Meters / yob | Kub (C) | lus hais |
| 1 | TX-CC1000-1BY | 1. 0mmx1 | 2.2mm ± 0.07 | Tsawg dua lossis sib npaug li 240 | E (Dub + Daj) | 2500 | 55~85 | Kev tu ib leeg |
| 2 | TX-CC1000-1BG | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE (Dub + Ntsuab) | 2500 | 55~85 | Singfe core |
| 3 | TX-CC1000-1BR | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE (Dub + Liab) | 2500 | 55~85 | Ib leeg |
| 4 | TX-CC1000-1Y | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE (dawb) | 2500 | 55~85 | Ib leeg |
| 5 | TX-CC1000-1G | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE (Green) | 2500 | 55~85 | Ib leeg |
| 6 | TX-CC1000-1R | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE (Red) | 2500 | 55-85 | Ib leeg |
| 7 | TX-CC0500-1 | 0.5mmx1 | 1.0mm±{2}}.15 | <280 | PE | 1500/5000 | 55~70 | Ib leeg cor |
| 8 | TX-CC0500-1C | 0.5 hli × 1 | 1.0mm±{2}}.15 | Tsawg dua los yog sib npaug li 250 | PE | 1500/5000 | 55~85 | Ib leeg |
| 9 | TX-CC0500-1C/125 | 0.5 hli × 1 | .25mm ± 0.15 | <250 | PE | 1500/5000 | 55~85 | Kev tu ib leeg |
| 10 | TX-CC0750-1C | 0.75mmx1 | 2.2mm ± 0.07 | <200 | PE | 2500 | 55-85 | Ib leeg |
| 11 | TX-CC1000-1B/1.25 | 10mmx 1 | 1.25mm ± 0.15 | <200 | PE | 1500/5000 | 55-85 | Singie care |
| 12 | TX-CC1000-1 | 1. 0mmx1 | 2.2mm ± 0.07 | <240 | PE | 2500/5000 | 55~85 | Ib leeg |
| 13 | TX-CC1000-18 | 1. 0mm × 1 | 2.2mm ± 0.07 | <200 | PE | 2500/5000 | 55~85 | Ib leeg |
| 14 | TX-CC1000-1A | 1. 0mmx1 | 2.2mm ± 0.07 | Tsawg dua los yog sib npaug li 160 | PE | 2500/5000 | 55~85 | Ib leeg |
| 15 | TX-CC1500-1/3.0 | 1.5mmx 1 | 3.0mm±{2}}.1 | <240 | PE / PVC | 700 | 55-85 | Singfe core |
| 16 | TX-CC2000-1/3.8 | 2. 0mmx1 | 3.8mm ± 0.1 | <240 | PE / PVC | 350 | -55~85 | Ib leeg |
| 17 | TX-CC3000-1/4.5 | 3. 0mm × 1 | 4.5mm ± 0.1 | <240 | PE / PVC | 150 | 55~85 | Ib cofe |
| 18 | TX-CC3000-1/5.0 | 3. 0mmx1 | 5.0mm±{2}}.1 | Tsawg dua lossis sib npaug li 240 | PE / PVC | 150 | -55~85 | Kev tu ib leeg |
Khoom Advanadge
1. Lub teeb txias txias, tsis yog ultraviolet, tsis muaj qhov nrawm ntawm qhov tseem ceeb.
2. Kev sib cais ntawm lub teeb thiab hluav taws xob, kev nyab xeeb thiab txhim khu kev qha daim ntawv thov nyob rau hauv cov nplaim taws thiab tawg.
3. Tsawg zog, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.
4. Kev sib kis tau yooj yim, siv rau hauv cov yas optic fiber ntau lub teeb thiab cov haujlwm ntawm POFdecoration, tuaj yeem tsim ua siab tawv thiab npau suav zoo li cov nyhuv
5. Optical fiber zaub nrog qis attenuation thiab siab brightness, tag nrho cov xim render, pom tseeb, tsis muaj zog, yooj yim recycle thiab lub neej ntev thiab lwm yam
Qhov zoo tshaj plaws hluav taws kub Resistant Performance
Cov khoom siv
1. Digital imaging System: toslink
2. Muaj Serial: Avago
3. Muaj Sensor
4. Kev sib txuas lus: Hauv Tsev Network. Nyob deb luv (hauv 100M)
5. Kho kom zoo nkauj rau lub teeb
6. Tsheb tswj System: MOST
Peb lub tuam txhab
Jiangsu TX Plastic Optical Fibers Co., Ltd. yog lub chaw tsim khoom siv high-tech ntawm cov yas kho qhov muag cable uas tshwj xeeb hauv kev tshawb fawb thiab kev tsim kho .Lub hauv paus chaw tsim khoom nyob rau hauv lub nroog keeb kwm nto moo-Zhenjiang Jiangsu Province, Suav teb. Peb cov khoom siv lub luag haujlwm tseem ceeb hauv POF daim ntawv thov kev lag luam ntawm cov ntaub ntawv xa mus, kev tswj hwm kev lag luam, kev tswj fais fab, kev lag luam automation thiab tsheb txawj ntse, thiab lwm yam hauv cov txheej txheem ntawm kev txhim kho, peb dhau "ISO9001", "REACH", "SGS" cov ntawv pov thawj kev tshaj lij. .
FAQ
1.Yog fiber ntau optic tshav kub resistant?
Cov pa fiber ntau optical tsis yog cua sov ua haujlwm, feem ntau qhov kub thiab txias yog qis dua 80 degree, thiab yog li ntawd, tsis haum rau siv nyob rau hauv high-temperature ib puag ncig.
2.Puas fiber ntau optic cable ntes hluav taws?
Txij li thaum fiber-optic cable tsis nqa hluav taws xob, peb tsis txhawj txog electrocution. Ib yam li ntawd, peb tsis txhob txhawj txog hluav taws vim fiber-optic cable tsis yog qhov chaw ntawm tshav kub los yog combustion.
3.Yuav ua li cas yas ua rau optical fibers?
Plastic optical fiber (POF) los yog polymer optical fiber yog ib qho khoom siv kho qhov muag uas yog tsim los ntawm polymer. Zoo ib yam li iav optical fiber, POF xa lub teeb (rau illumination los yog cov ntaub ntawv) los ntawm cov tub ntxhais ntawm fiber.
